How desalination can help address the freshwater challenge
Water is a scarce resource, at least fresh water is. While water covers 70% of our planet, only 3% of the world’s water is fresh water. Also, two-thirds of that 3% is hidden in glaciers or unavailable for drinking, bathing or irrigating farm fields.
Expert story by
Marjolein Vanoppen
Rising water stress: impact of climate change on global water availability
The United Nations reports that over 2 billion people live in countries that experience high water stress. Water stress, which is the ratio of water use to the availability of freshwater resources, has been increasing over time, mainly because of rising water consumption. But as climate change will further increase the risk of droughts, changes in water availability are likely to intensify water stress as well.
Desalination delivers 95 billion litres of water per day for human use
Access to sufficient quantities of quality fresh water is essential to achieve various sustainable development goals, including those related to food security, health, and reducing poverty. Water scarcity has explicitly been identified as a major global challenge of the Sustainable Development Goals (SDGs).

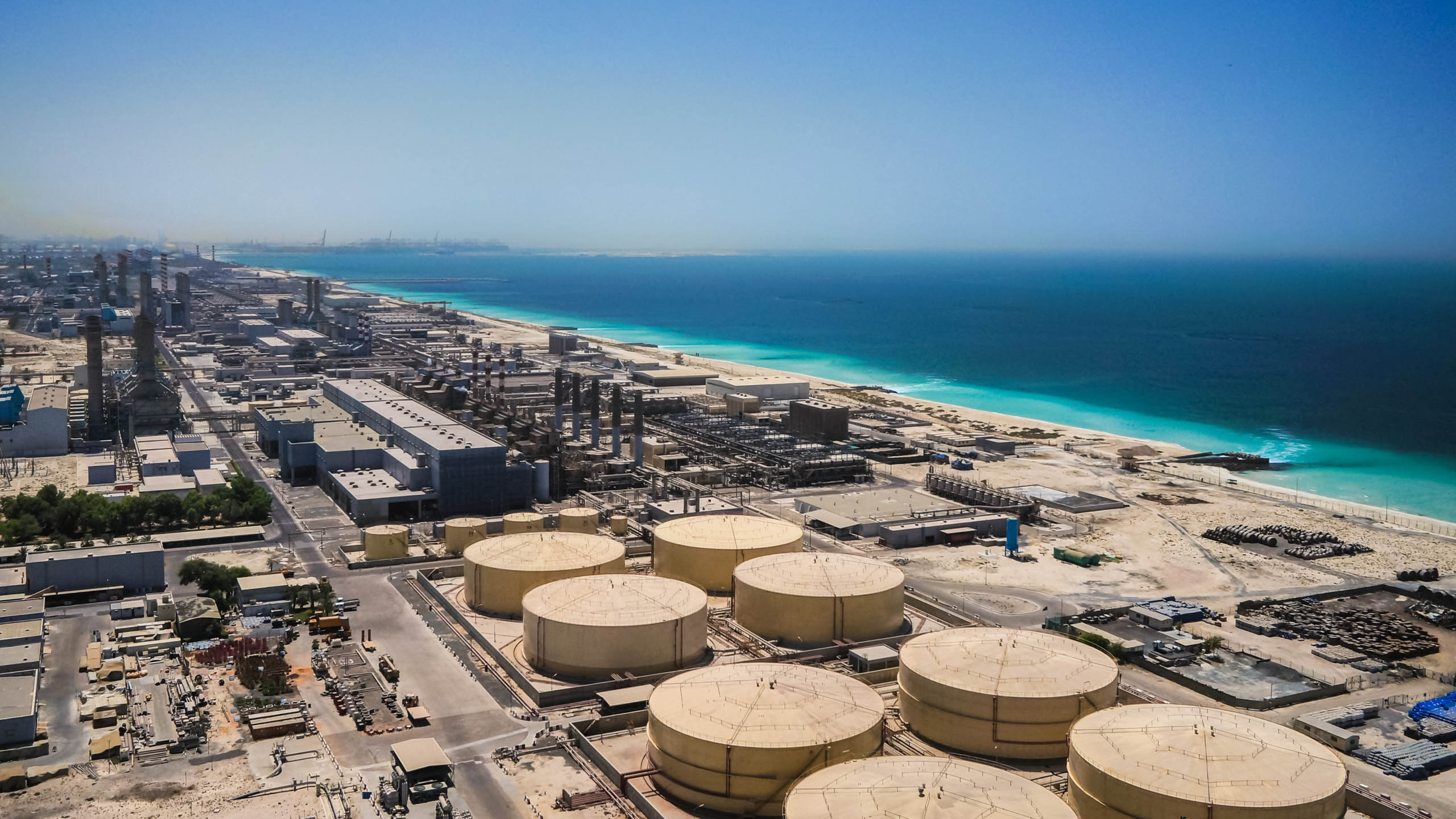

Because water use has been growing twice as fast as the global population and is further increasing, conventional freshwater resources are no longer sufficient to meet rising water demands. Given that oceans cover 70% of the earth’s surface, it is only natural that we look at them as a source to help limit the gap between water demand and supply. Seawater desalination approaches are therefore needed and are expected to play a vital role in this regard. Sixteen thousand desalination plants are currently estimated to be active. These plants already produce 95 billion litres of desalinated water per day for human use.
Main types of desalination methods

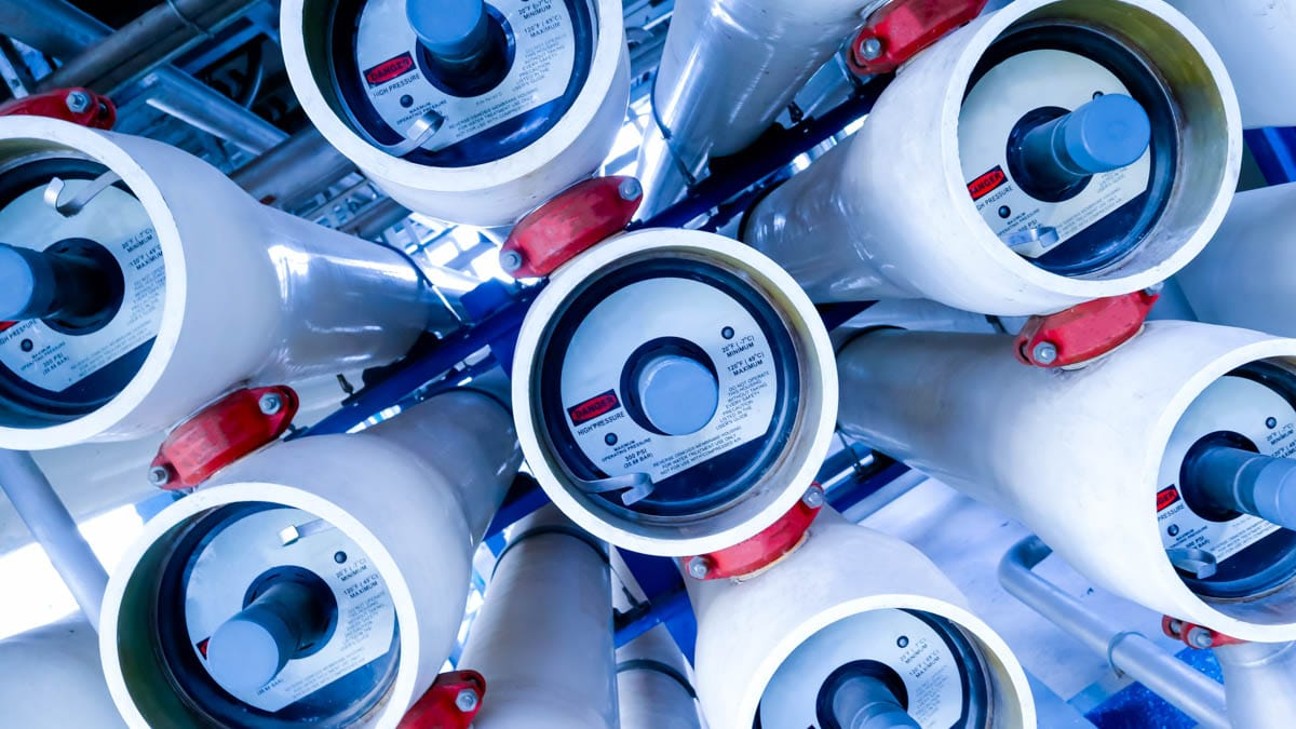

The main types of desalination methods are membrane desalination (such as Reverse Osmosis) and thermal desalination. While thermal desalination uses heat to evaporate, condense and purify water, reverse osmosis is using pressure-driven separation technology. It removes salt and other impurities by passing water through a series of semi-permeable membranes.
As the basic efficiency of the reverse osmosis process is very high, this membrane technology has evolved into the leading desalination method since its development approximately 70 years ago. The expectation is that future technological challenges and developments will focus on three pathways:
- the evolutions in the membranes themselves, mainly related to increasing water permeability and improved mass transport properties
- the creation and deployment of hybrid desalination systems
- the use of desalination technology in the realisation and implementation of intelligent linked solutions for water demand
Hybrid desalination methods

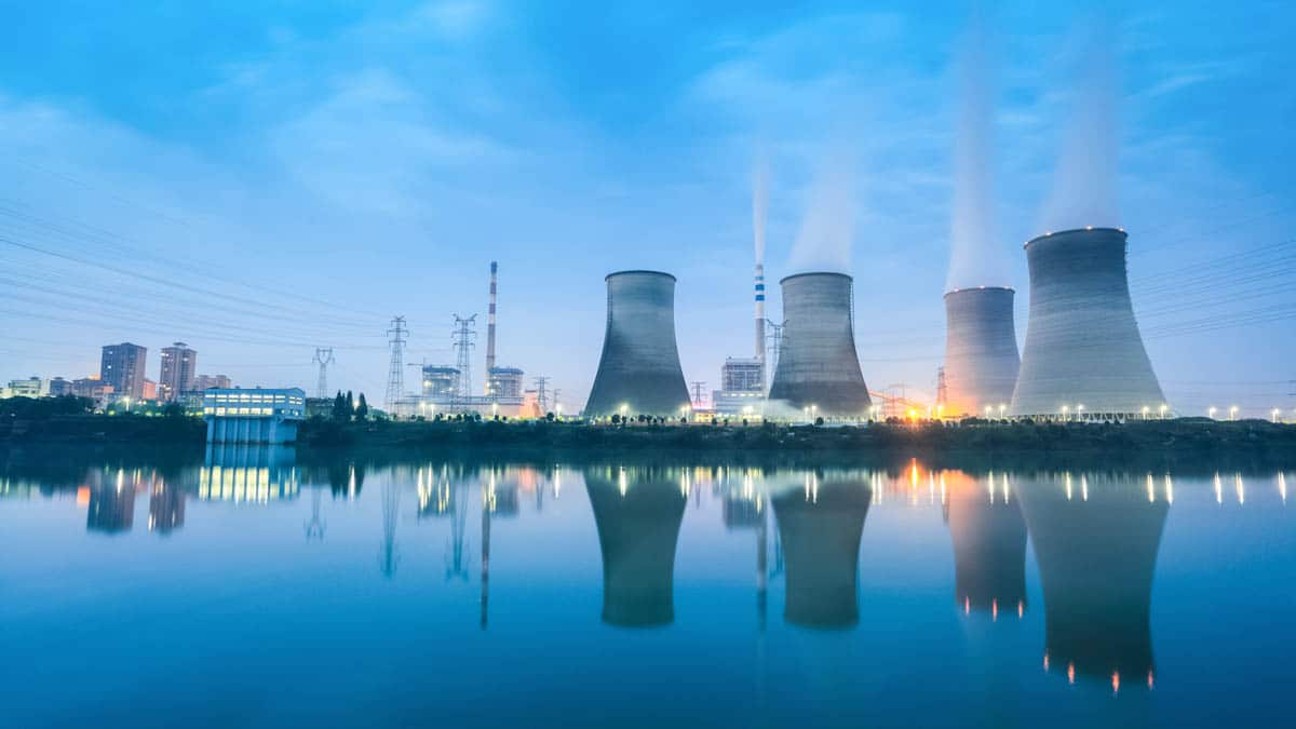

Hybrid desalination technology combines two or more processes to achieve better environmental solutions and reduce production costs, compared to each individual process. Hybrid can be seen as a combination of regular power plants and thermal desalination plants, where the desalination process is driven by thermal energy from the power plant. On the other hand, desalinating the water before use is an option for limiting water usage by cooling towers in thermal power plants. On rivers with a higher risk of water shortages during dry periods, pilot systems have confirmed that innovative desalination technology may protect power plants against being shut down and not being able to produce any electricity.
Other sources of energy and combinations are also possible. Salinity Gradient Power (SGP) is an example where energy is produced through the combination of two water masses with a higher and lower salinity (typically seawater and river discharge). At a pilot stage, this technology has shown to produce energy and lower the salinity of the input stream at the same time. Providing a pre-treatment for the desalination through reverse osmosis can help lower energy demand and the associated costs while reducing environmental impact at the same time.
Hybrid systems, which reduce the environmental impact and costs of desalination through the smart coupling of different technologies, will further evolve over the next 10 years towards a larger-scale roll-out and realisation of interconnected systems.
Societal challenges
Apart from the challenges to optimise the technological and economic aspects of desalination processes, there are quite a few significant societal challenges as well. Desalination clearly has an impact on the environment through the energy that is used and its residual products.
Because of this impact on the environment, several key challenges need to be addressed. These include the energy demand of the processes, the emissions of air pollutants, and the saline concentrate and chemicals discharges (the so-called brine) to the marine environment. Innovative technologies and strategies are needed to mitigate the environmental impact of brine disposal and reduce its economic cost. Recent studies report promising progress, stating that the brine can be converted into useful chemicals. Through the use of hybrid systems, it can even contribute to the efficiency of the desalination process.
Solving the global water puzzle
Finally, desalination is not an isolated activity. It is part of the global water puzzle together with other technologies and methods. The reuse of process water or the adaptation of infrastructure for large-scale rainwater buffering are just a few examples.
One of the most significant technological challenges for the next 10 years lies in making the best possible use of the available water resources, based on the actual needs. Smart desalination systems will be an indispensable part of that and should be developed in such a way that production, storage and use can be optimally matched to fit the water system.
This article on Desalination is inspired by the white paper “Blue Technologies for blue sustainability” published by the Blue Cluster and the Flanders Marine Institute.
